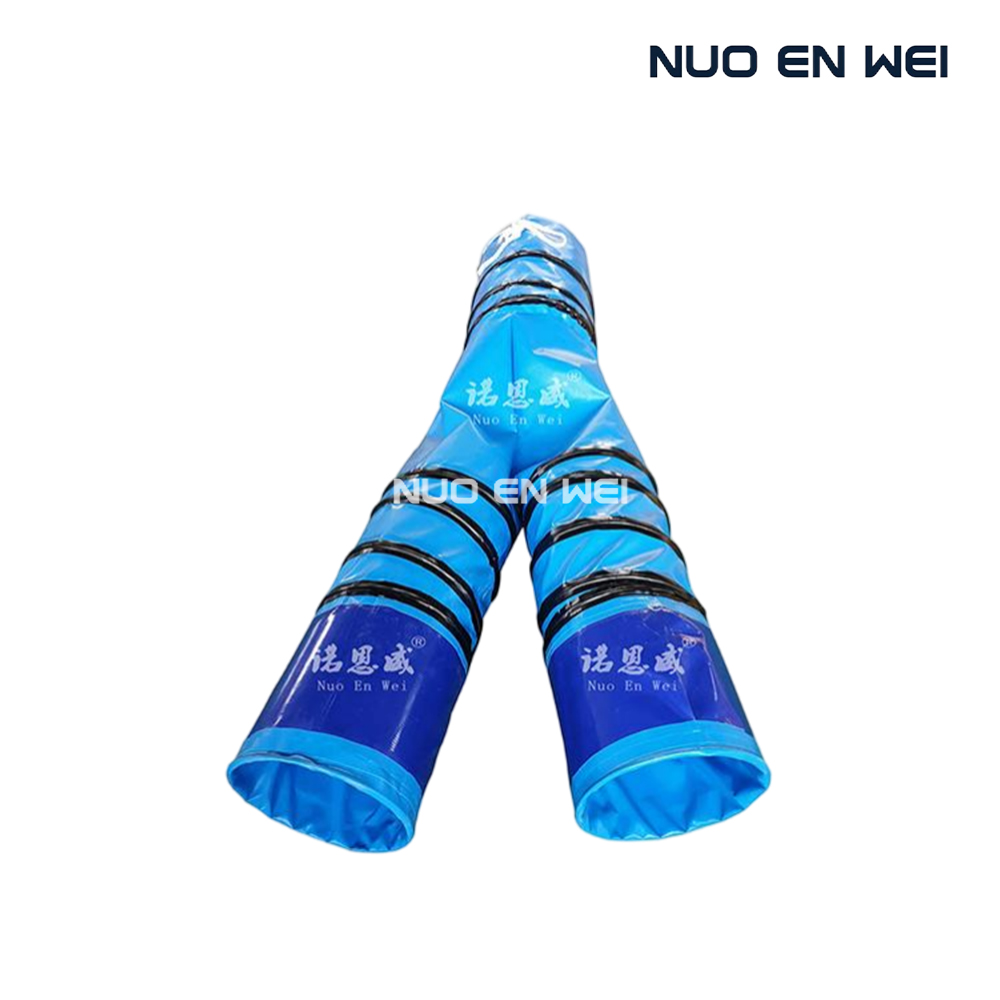

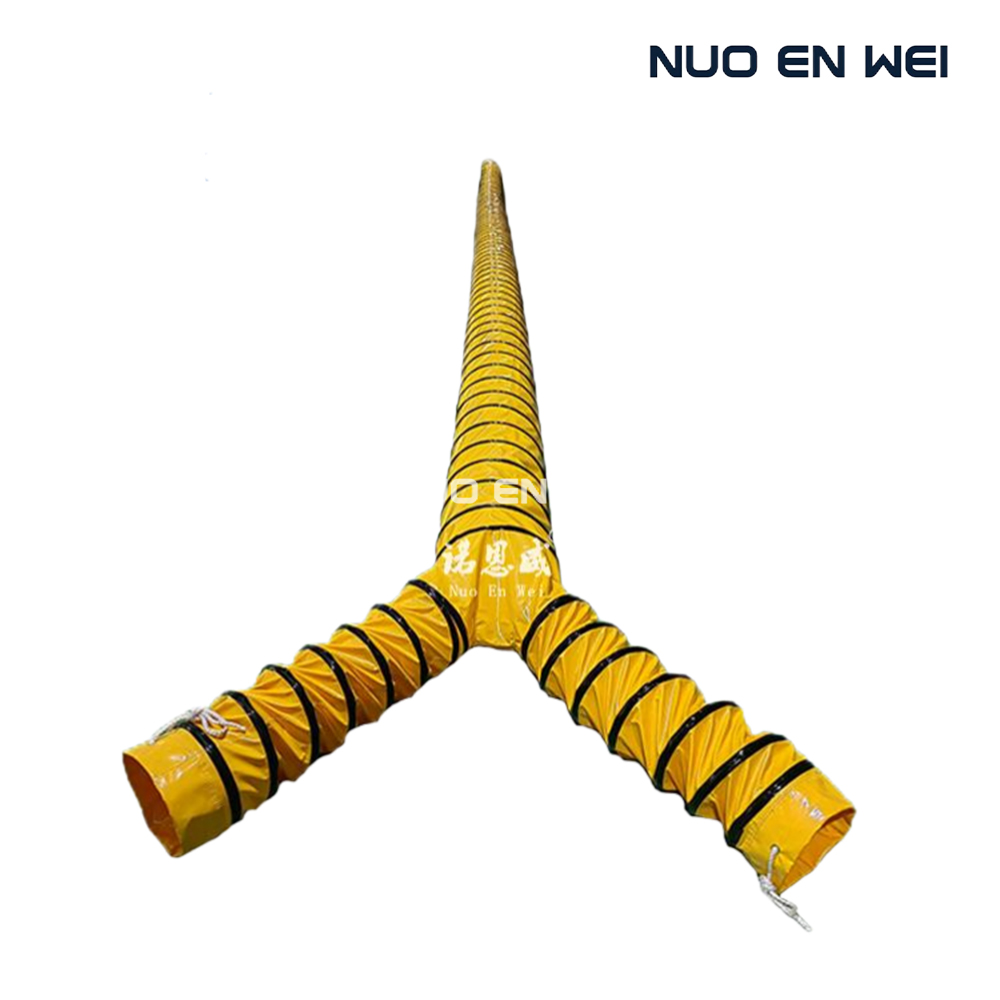

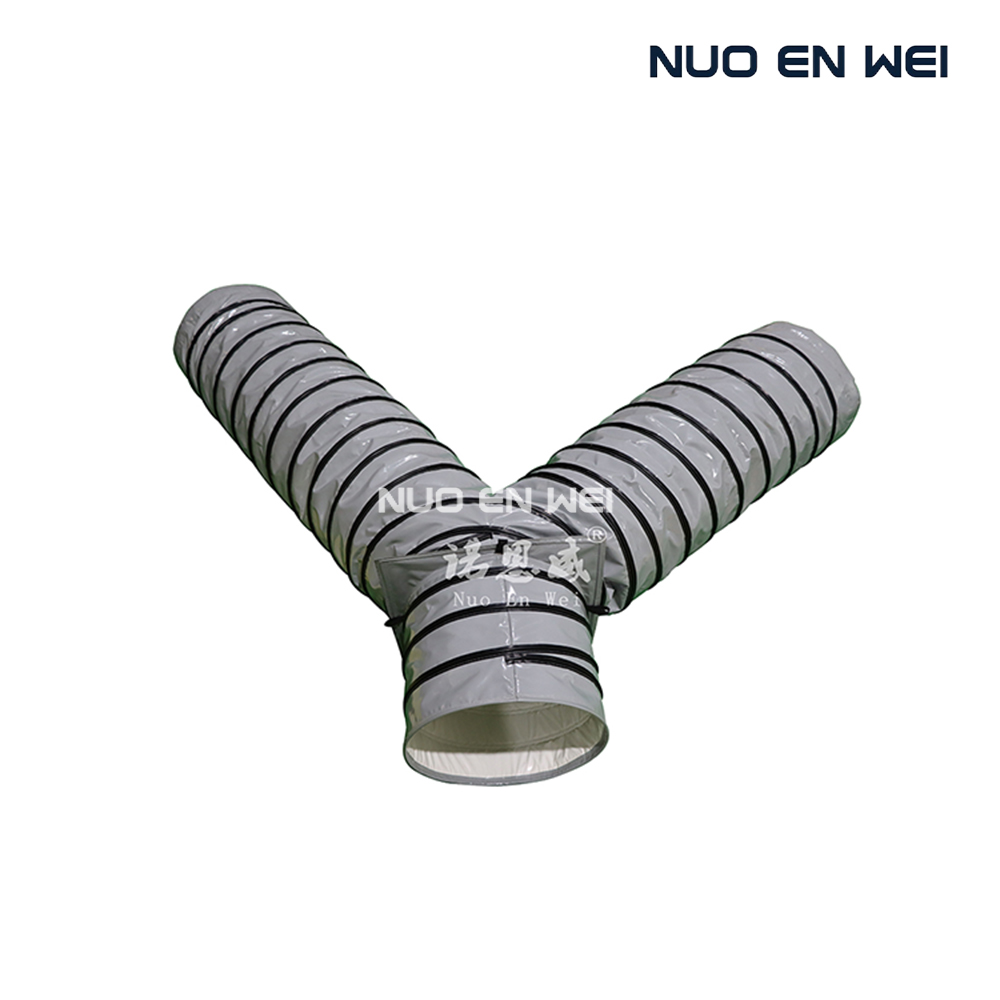

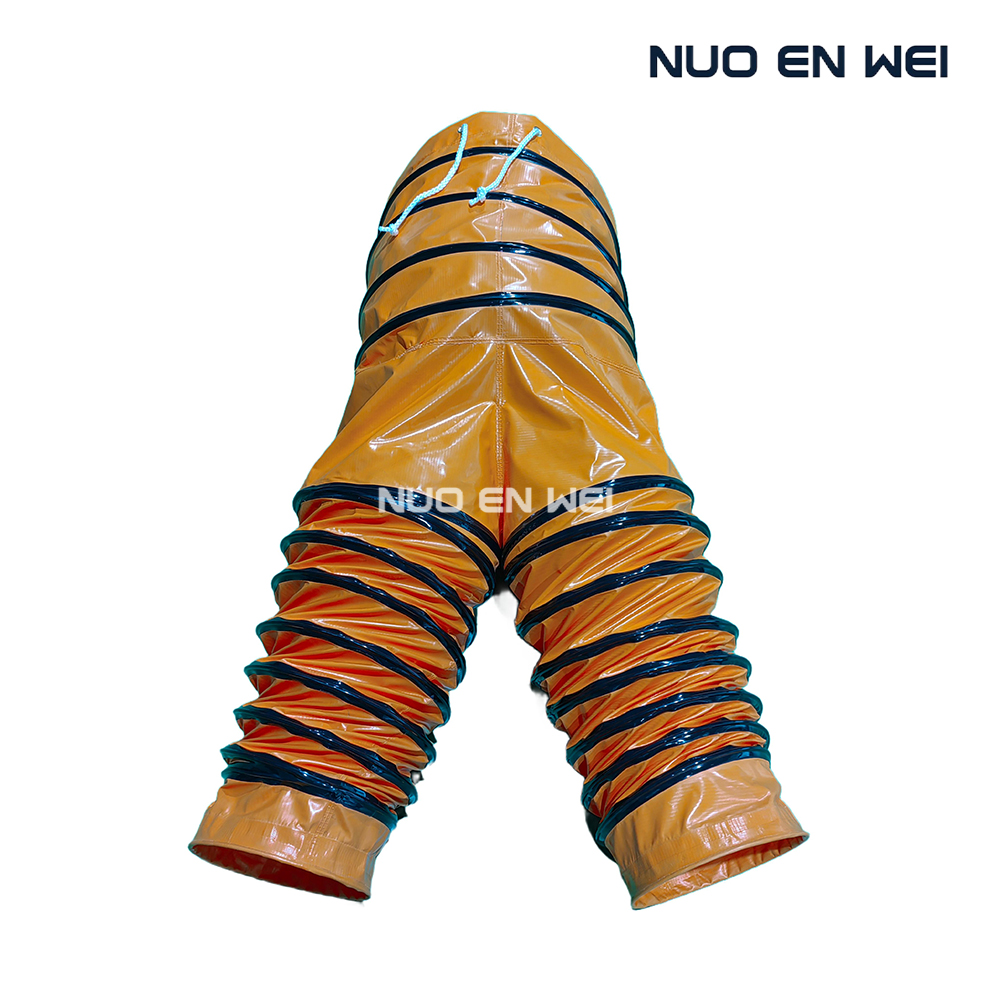

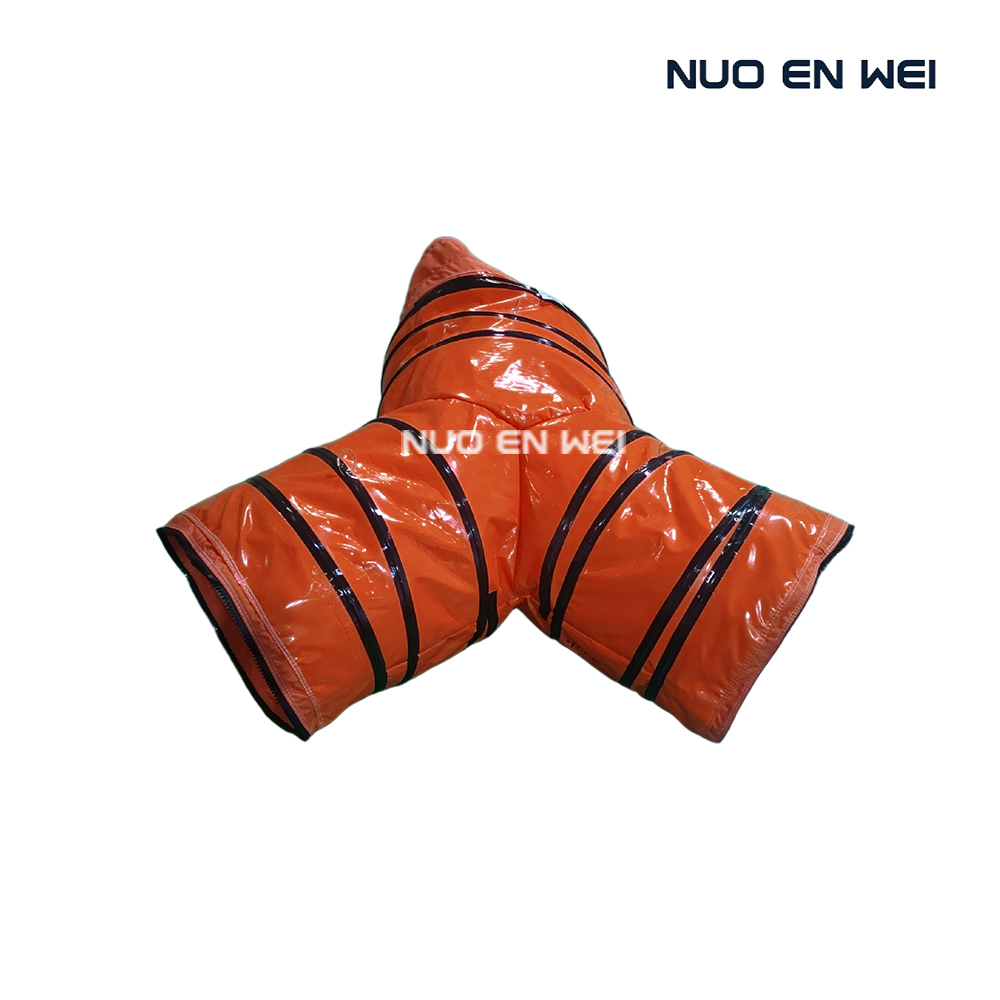

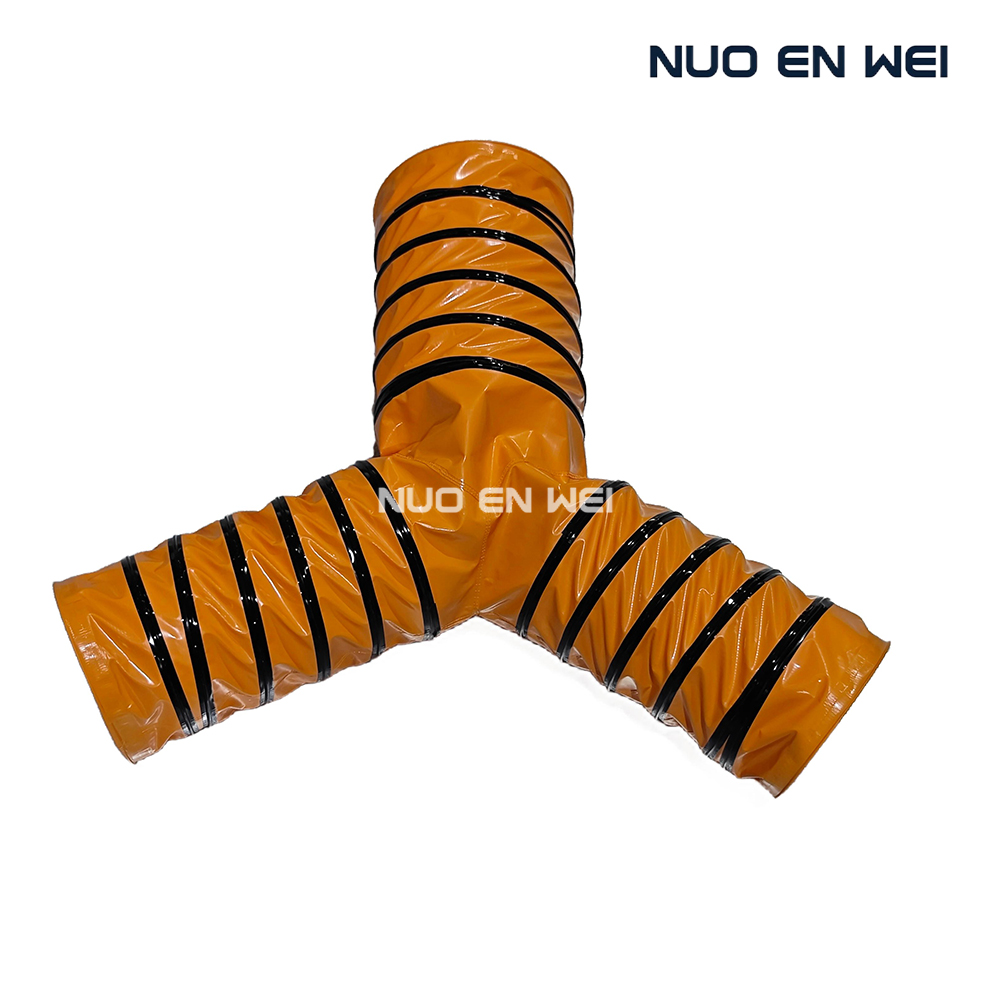

NUOENWEI PVC Fabric Y-Shaped Flexible Ducting – Custom Branch Duct

True three-way airflow distribution without a rigid manifold. The Y-junction is fabricated into the fabric body itself, so the duct bends through the branch transition instead of forcing the installer to build a metal Y-fitting and then clamp three separate flexible runs onto it. Fewer joints means fewer leak points and a faster install in tight ceiling voids or equipment bays.

Flame-retardant PVC fabric as the base material, not an aftermarket coating. The fabric is formulated to class B flame-retardant standards and simultaneously resists water and chemical corrosion. This makes the Y-duct suitable for welding fume, paint exhaust, and humid or washdown-adjacent environments where an untreated fabric duct would degrade or become a fire path.

High-carbon spring steel frame keeps the Y-branch open under pressure. The helical wire is sized and spaced by duct diameter so that the branch legs do not flatten when the fan runs on the suction side. The duct can still be compressed for storage and shipping, but it returns to shape when unpacked — a practical advantage on project sites where storage space is limited and duct runs are installed in phases.

Abrasion-resistant rubber strips target the failure point. The branch junction and the fabric zones that rub against scaffolding, duct hangers, or equipment edges are the first places a fabric splitter wears through. NUOENWEI bonds rubber strips at those locations as a standard build step, extending service life without requiring the customer to add external wear sleeves.

Every branch diameter is independently customizable. The inlet and each outlet can be ordered in different sizes to match the air balance the system actually needs. This avoids the common compromise of buying a symmetrical Y-piece and then choking one branch with a damper because the branch was oversized for its run.

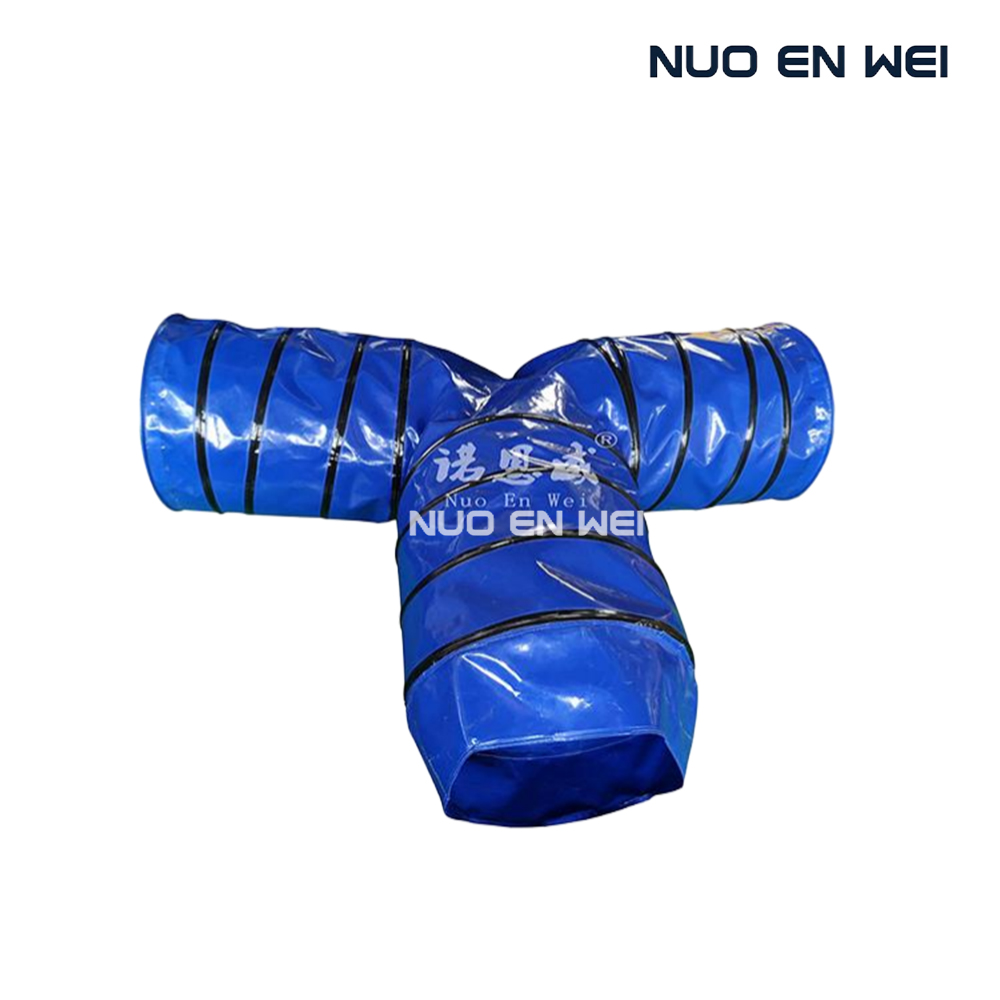

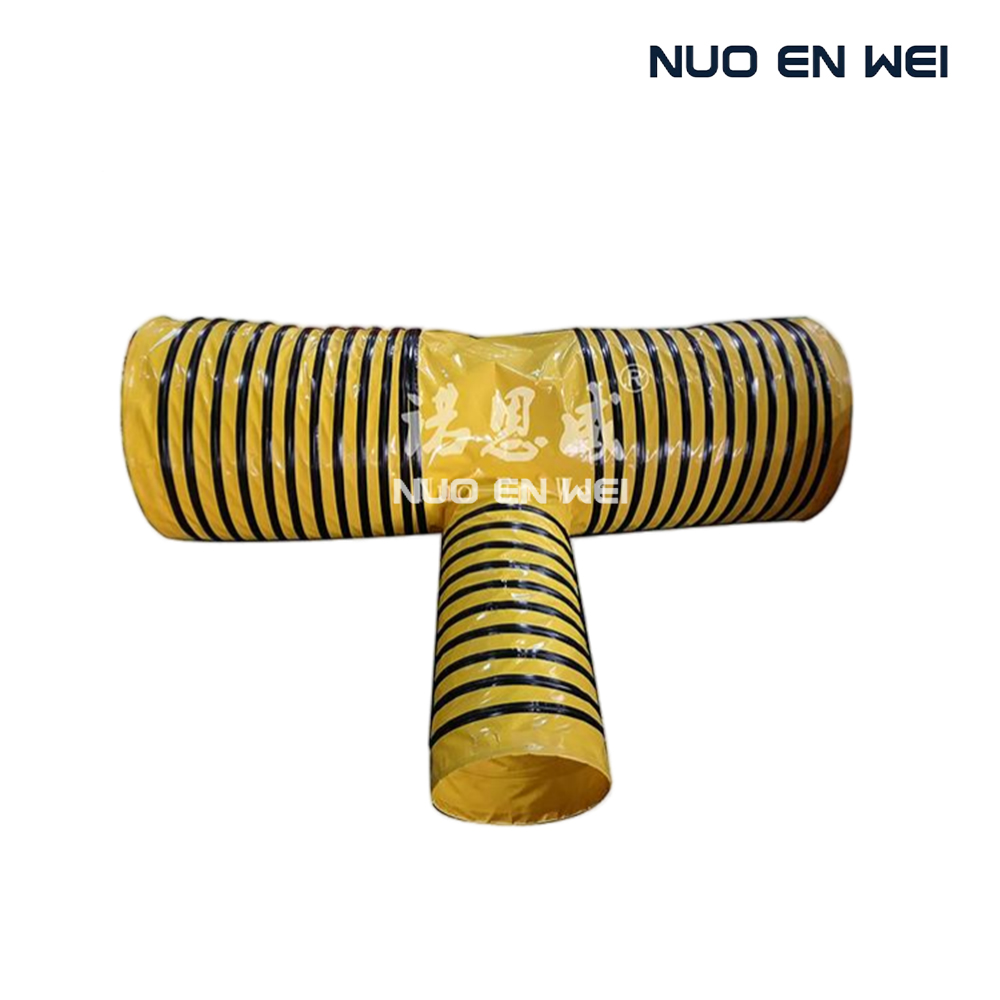

Standard Y and T geometries plus drawing-based custom shapes. Off-the-shelf Y and T configurations cover the majority of branch layouts, but when the equipment interface or structural obstruction demands an asymmetric or non-standard split, production moves to a drawing-or-sample basis rather than forcing the customer into a catalog shape.

Welding and metal fabrication shops. A single fume extraction fan can serve two welding bays through one Y-shaped branch duct, with each branch sized to the capture arm or hood it serves. The flame-retardant fabric and rubber wear strips are directly relevant to the sparks and abrasive dust typical of MIG and stick welding environments.

Tunnel and underground auxiliary ventilation. When a tunnel driving face requires splitting the forcing ventilation line to serve two headings, a Y-branch flexible duct allows the split to be made with a bendable, compressible component rather than a fabricated steel junction. The spring steel frame resists collapse under the negative-pressure conditions common in long auxiliary runs.

Industrial HVAC branch distribution in factories and warehouses. Large open industrial buildings often need conditioned or filtered air delivered to multiple zones from one air handler. A Y-shaped fabric branch can split the main run overhead and route each leg to a different zone, with branch diameters selected to balance static pressure across the two paths.

Aircraft ground cooling and preconditioned air. Y-branch fabric ducts are used in ground support configurations where one PCA unit feeds two cabin connection points. The lightweight fabric construction and customizable end connections make the duct practical for ramp deployment and demobilization.

Greenhouse and agricultural ventilation. When a single circulation fan must serve two air-distribution lanes in a greenhouse, a Y-branch fabric duct provides a corrosion-resistant split that tolerates humid, fertilizer-laden air without the rust risk of a metal fitting.

Temporary and emergency ventilation. For construction or remediation projects where ductwork must be installed, relocated, and removed repeatedly, the compressible Y-duct stores flat between deployments and can be rebuilt into a different branch layout on the next phase using the same fan and main duct run.
