4 Way Duct Splitter - Fireproof PVC Multi-Branch Ducting | NUOENWEI
Our 4-Way Duct Splitter is engineered with flame-retardant PVC and anti-abrasion rubber seals, designed to create 4 independent air channels for ventilation, exhaust, or dust collection systems. Key advantages:
✅ Customizable Diameters (100mm to 500mm+ on demand)
✅ Adaptable Designs – Y-Type, T-Type, or hybrid configurations
✅ UL94-V0 Certified Fireproof Material
✅ 10-Year Durability Guarantee with steel spring reinforcement
✅ OEM/ODM Supported – Provide drawings for tailored solutions

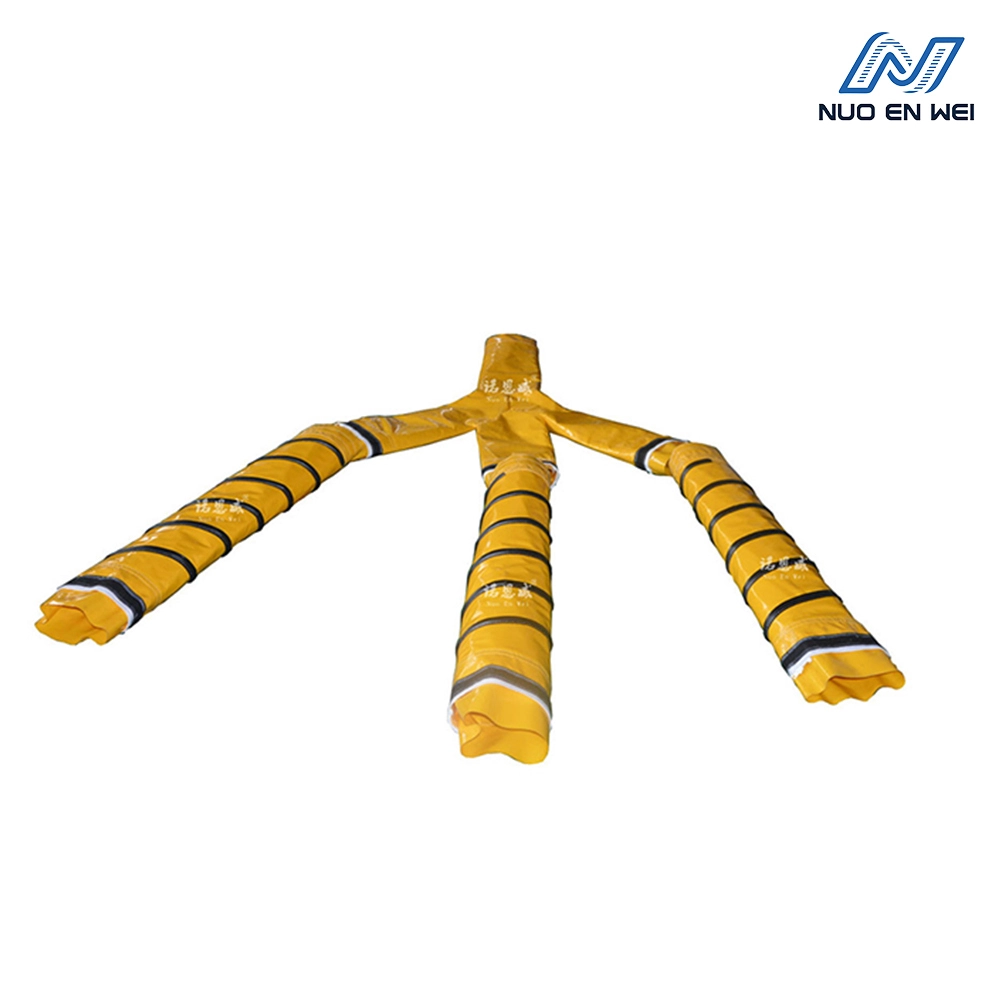

4-Way Duct Splitter
Product Features
① Multi-Branch Customization
- Branch Types: Y-shape, T-shape, or custom designs
- Diameter Range: 4" to 24" (100mm-600mm)
- Material: 1050D PVC fabric (Flame retardant to UL94 V-0)
② Reinforced Durability
- Steel spring frame with abrasion-resistant rubber sealing
- Operating temperature: -40°F to 212°F (-40°C to 100°C)
- 50,000+ bend cycles tested
③ Compliance & Certification
- ISO 9001:2015 Quality Management
Related Parameters
|
Material |
PVC,thermal insulation material |
|
Diameter |
4" to 24" (100mm-600mm) |
|
Thickness |
0.4-0.65mm (Different materials vary in thickness) |
|
Length |
Custom lengths available |
|
Temperature range |
-40°F to 212°F (-40°C to 100°C) |
|
Color |
Yellow,gray,green,blue(Custom color available) |
|
Connection |
Magic tape, zipper |
Application Scenario
- HVAC Ducting: Balance airflow in multi-zone buildings
- Industrial Ventilation: Connect fume hoods, welding exhausts
- Agricultural Airflow: Greenhouse humidity control systems
