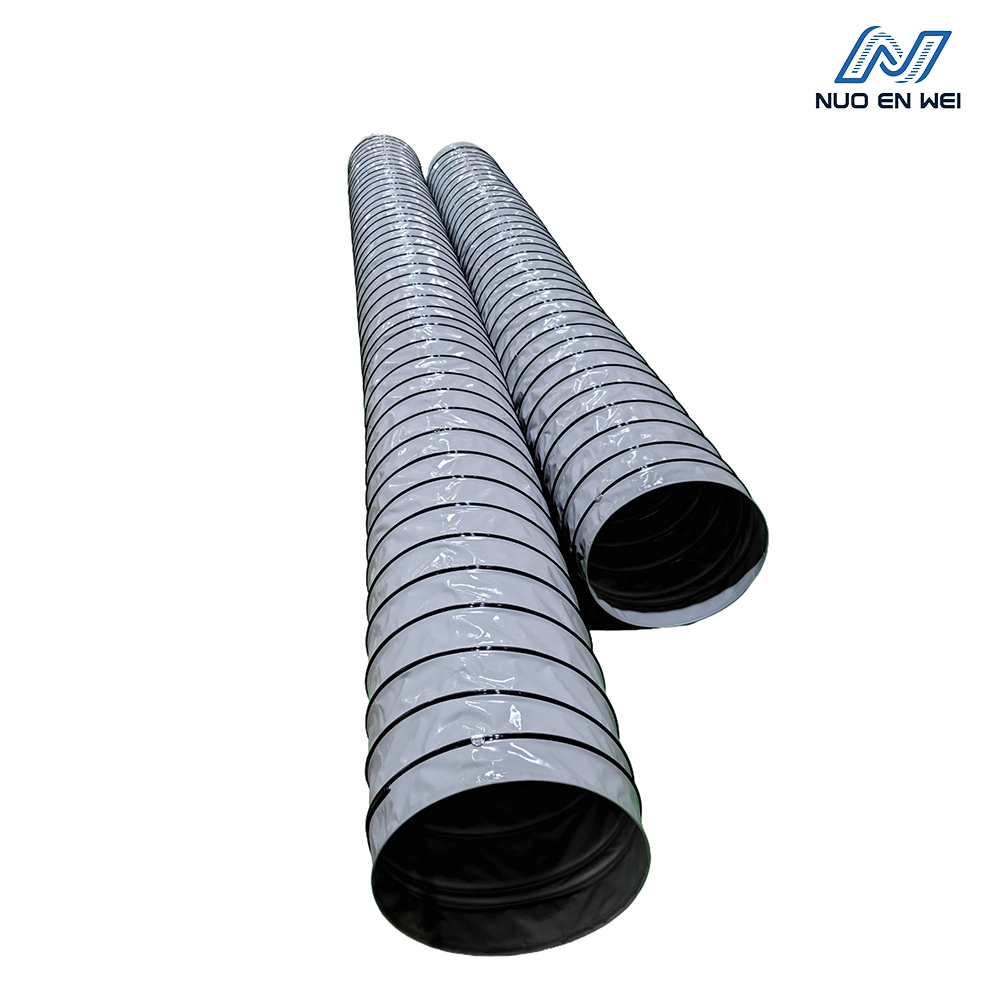

Flexible Ventilation Pipe with Stainless Steel D-Rings & Flame Retardant PVC - NUOENWEI
Our flexible plastic air duct redefines versatility for ventilation and exhaust applications. Engineered with advanced polymer technology and robust structural components, this duct system delivers unmatched performance across industries:
Unlimited Extension Design
- Flared ends with integrated PP rope & optional buckle/zipper connectors enable rapid, leak-free coupling of multiple ducts.
- Interlocking high-carbon steel rings ensure airtight continuity during expansion/contraction cycles.
Corrosion-Proof Suspension
- Stainless steel D-ring hangers with heavy-duty straps provide rust-resistant support for permanent installations.
Extreme Environment Resilience
- B1 fire-rated PVC withstands temperatures from -30°C to +80°C, resistant to acids, alkalis, and tearing.
- Abrasion-resistant polymer coating protects spring steel骨架 from mechanical wear.
Dynamic Flexibility
- 360° bend radius with memory-retention spring steel allows precise routing around obstacles without airflow loss.
flexible ventilation pipe
Our heavy-duty flexible plastic duct is engineered for demanding ventilation applications. The corrugated PVC construction with embedded spring steel provides exceptional durability while maintaining full directional flexibility. Certified with B1 flame retardant rating, it's the safest choice for industrial workshops, agricultural greenhouses, and commercial HVAC systems.
Related Parameters
| Feature | Specification |
|---|---|
| Material | B1 Flame Retardant PVC + High-Carbon Steel |
| Temperature Range | -30°C to +80°C |
| Diameter Options | 100mm-1000mm (customizable) |
| Connection Types | Buckle/Zipper/PP Rope |
| Certifications | ISO9001,UL94 |
Product Advantages
1. Modular Connection System
Flared ends with reinforced PP rope stitching
Interchangeable connectors (buckle/zipper options)
Achieve custom lengths without air leakage
2. Corrosion-Resistant Suspension
304 stainless steel D-rings
Withstands humidity, chemicals, and temperature extremes
3. Advanced Material Engineering
0.38-0.6mm thick B1 fire-rated PVC
Tear resistance: ≥150N/cm²
Operating range: -30℃ to +80℃
4. Structural Reinforcement
Dual-layer protection:
Outer abrasion-resistant PVC strip
Inner high-carbon spring steel
5. Leak-Free Assembly
2.5mm thick carbon steel connection rings
Snap-lock design for tool-free installation
Application Scenario
- Industrial Fume Extraction Systems
- Greenhouse Circulation Ventilation
- Commercial Kitchen Exhaust
- Construction Site Dust Removal
- Mine Tunnel Air Supply
